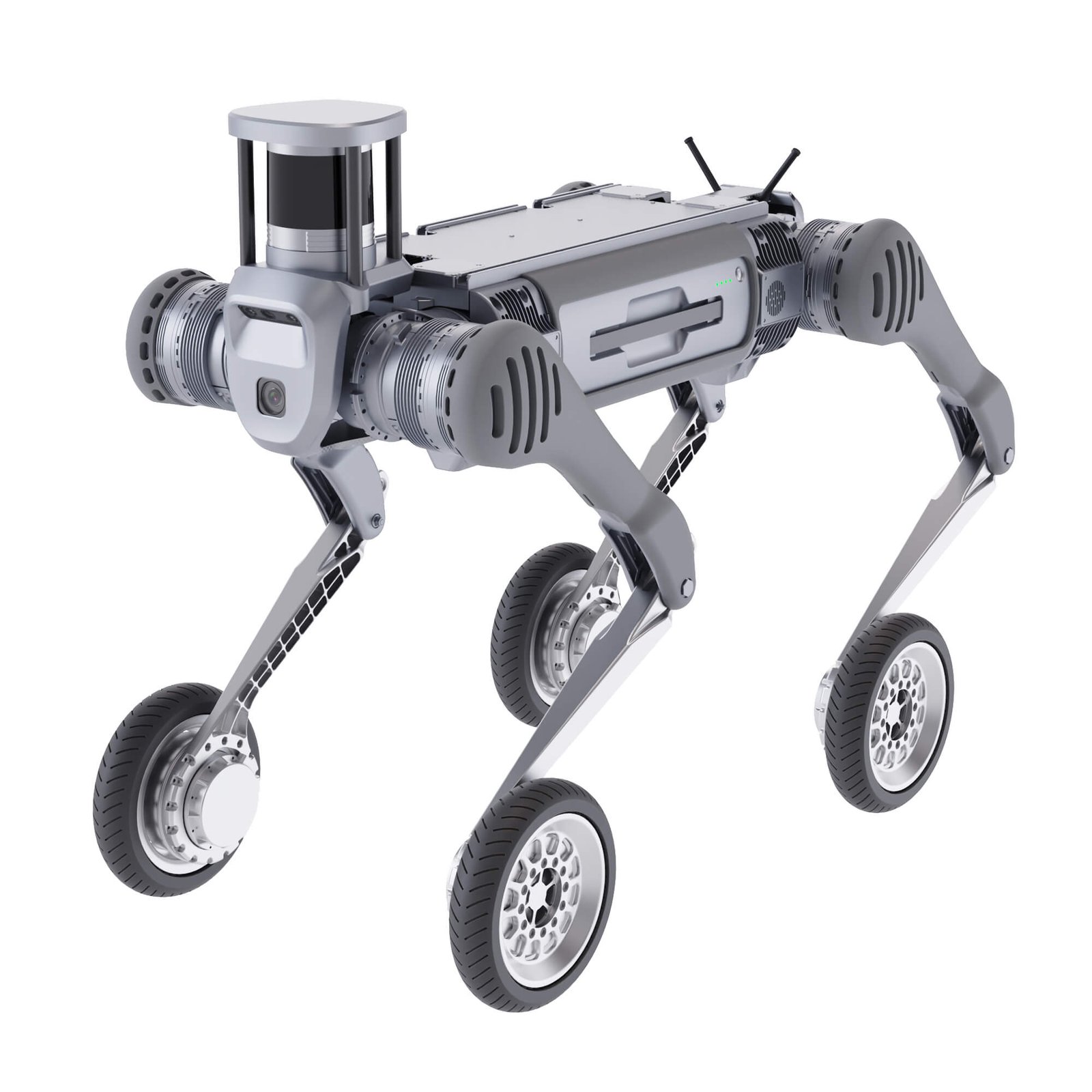

Unitree B2-W Industrial Quadruped Robotic Dog with LiDAR and Wheels

Introducing the Unitree B2-W. a state-of-the-art quadruped robot that seamlessly integrates legged mobility with wheeled efficiency. Designed for industrial applications. research. and advanced robotics development. the B2-W offers unparalleled versatility and performance.

Key Features:

• Dual Mobility Modes: Effortlessly switch between legged and wheeled locomotion to adapt to diverse terrains and operational requirements.

• High-Speed Capability: Achieves speeds up to 20 km/h. ensuring rapid deployment in time-sensitive scenarios.

• Extended Endurance: With a battery capacity exceeding 2 kWh and a voltage of 58V. the B2-W can travel up to 50 km with a 40 kg load. supporting prolonged missions without the need for frequent recharging.

• Robust Load Capacity: Supports a maximum standing load of 120 kg and a walking load exceeding 40 kg. making it suitable for transporting equipment or conducting inspections.

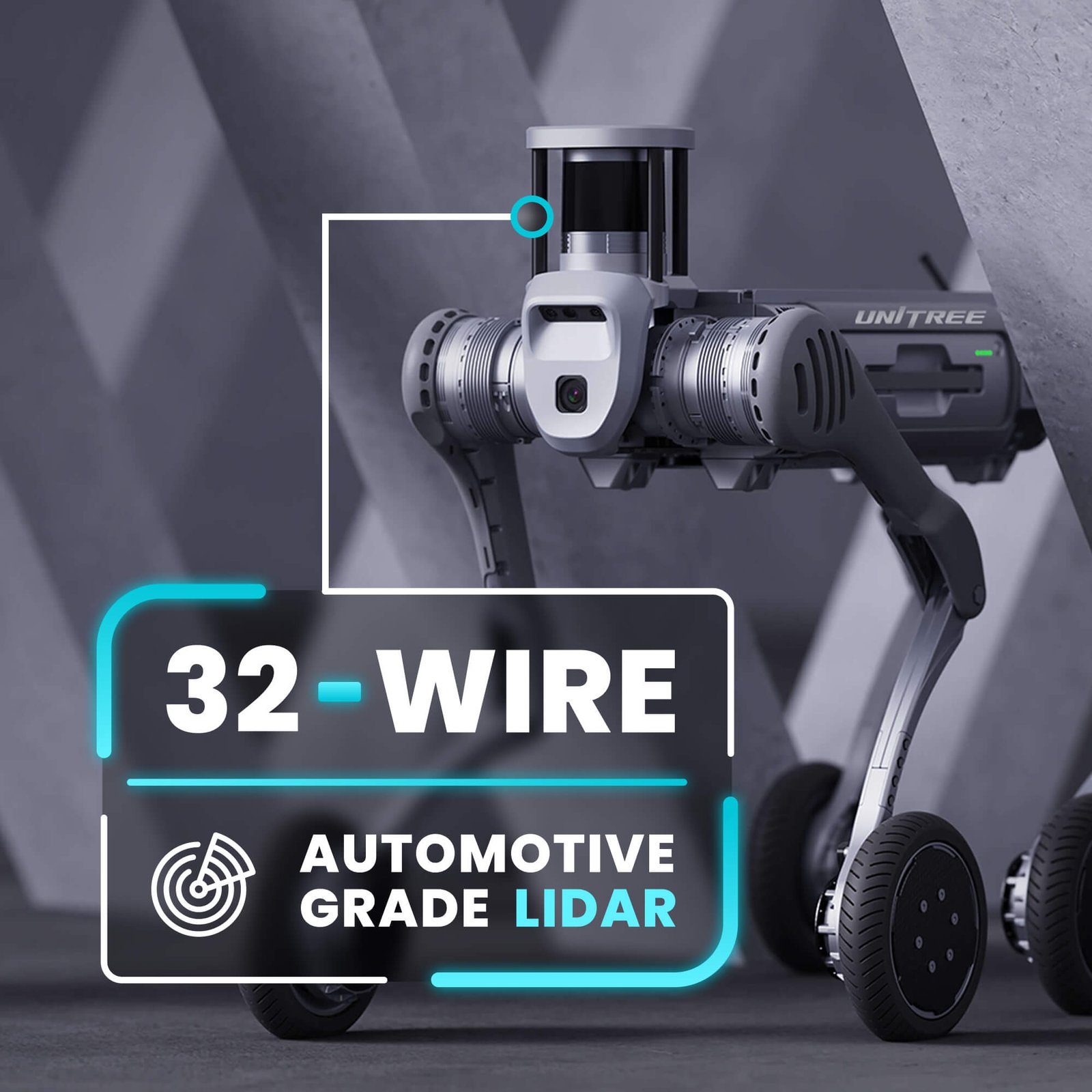

• Advanced Sensing and Control: Equipped with depth cameras and optional 3D LiDAR. the B2-W offers precise environmental perception. enhancing autonomous navigation and obstacle avoidance capabilities.

• All-Terrain Adaptability: Capable of climbing stairs with heights ranging from 20 to 25 cm. operating in temperatures between -20°C to 55°C. and handling climbing angles exceeding 45°. the B2-W is built to perform in challenging environments.

Technical Specifications:

• Dimensions:

  • Standing: Approximately 1098 mm x 550 mm x 758 mm
  • Lying Prone: Approximately 950 mm x 550 mm x 450 mm

• Weight: Approximately 75 kg (including battery)

• Battery Capacity: Greater than 2 kWh. voltage 58V

• Wheel Specifications:

  • Diameter: 225 mm
  • Maximum Speed: 57 rad/s
  • Maximum Torque: 50 N·m

• Ingress Protection: Rated at IP67. ensuring high resistance to dust and water ingress

• Operating Temperature Range: From -20°C to 55°C

• Control and Perception Options:

  • Standard: Intel Core i5 (Platform Function). Intel Core i7 (User Development)
  • Optional: Intel Core i7 and Jetson Orin NX (up to 3 devices)

The Unitree B2-W sets a new benchmark in robotic mobility and functionality. making it an ideal choice for professionals seeking a reliable and adaptable solution for complex tasks.
